【深度学习】注意力机制详细流程

EulerBlind
2025-07-01 / 0 评论 / 0 点赞 / 2 阅读 / 0 字

自注意力机制

  • 计算公式
    \operatorname{Attention}(Q, K, V)=\operatorname{softmax}\left(\frac{Q K^T}{\sqrt{d_k}}\right) V

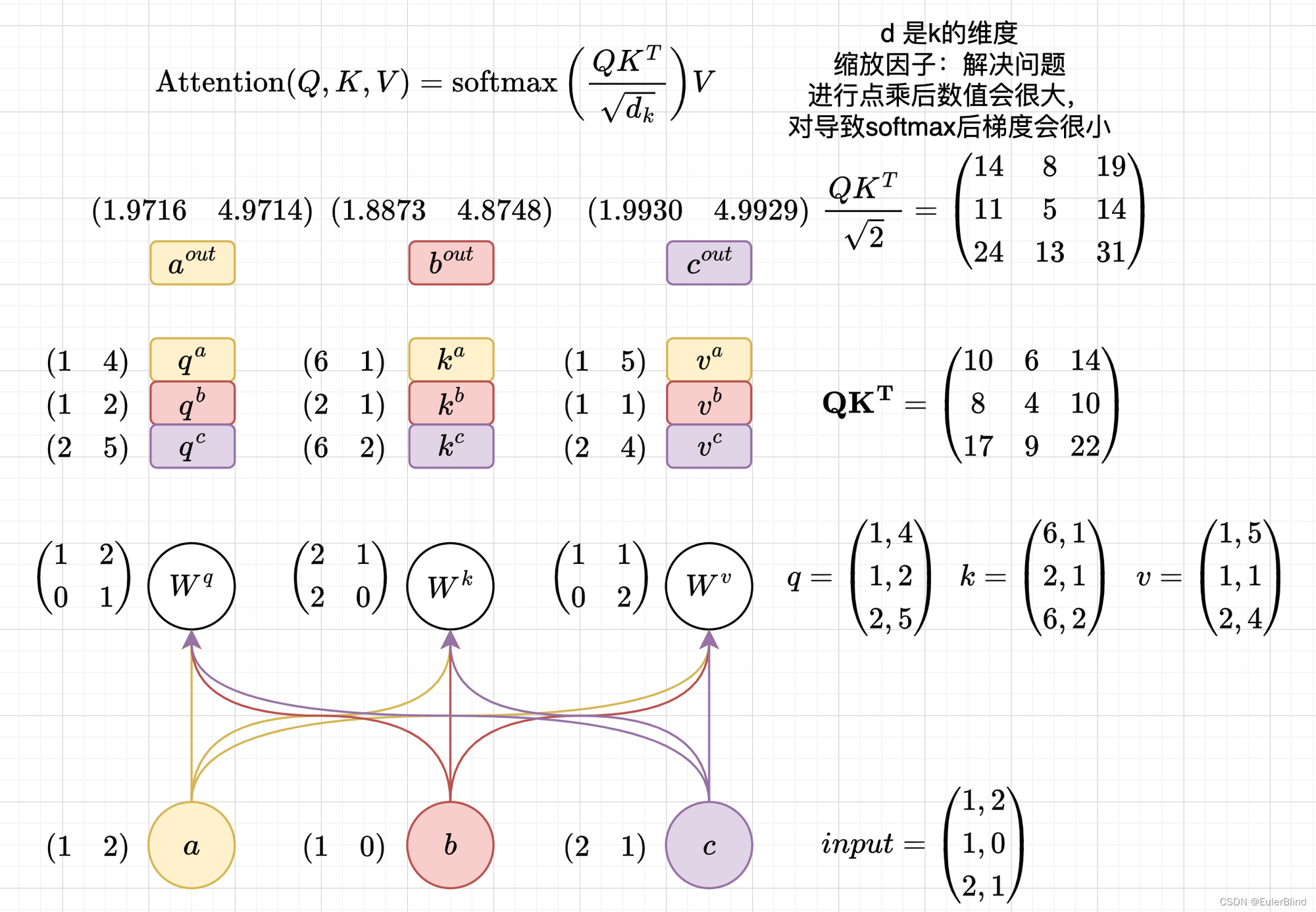

  • 计算流程

img点击并拖拽以移动编辑

  • 相关代码

    import torch

    a = torch.tensor([1, 2], dtype=torch.float)
    b = torch.tensor([1, 0], dtype=torch.float)
    c = torch.tensor([2, 1], dtype=torch.float)
    # input
    input_tensor = torch.stack((a, b, c), dim=0)

    w_q = torch.tensor([[1, 2], [0, 1]], dtype=torch.float)
    w_k = torch.tensor([[2, 1], [2, 0]], dtype=torch.float)
    w_v = torch.tensor([[1, 1], [0, 2]], dtype=torch.float)

    q = torch.matmul(input_tensor, w_q)
    k = torch.matmul(input_tensor, w_q)
    v = torch.matmul(input_tensor, w_q)

    # 自注意力公式
    # $$
    # \\operatorname{Attention}(Q, K, V)=\\operatorname{softmax}\\left(\\frac{Q K^T}{\\sqrt{d_k}}\\right) V
    # $$
    # output
    output_tensor = torch.softmax((q @ k.T) / 2 ** 0.5, dim=1) @ v
    print(output_tensor)


    点击并拖拽以移动

多头自注意力机制

  • 计算流程
    下图中为三个输入,分成两个head的情况,第一步根$W^q$,$W^k$,$W^v$求$q$、$k$、$v$跟自注意力机制中一致,不同处在于对于求取的$q$、$k$、$v$三个矩阵需要按照head个数 均分后再 组合,得到其中一个head结果$head_1^q$、$head_1^k$、$head_1^v$,在该head内部使用自注意力公式计算结果,由于这里给定的输入向量长度比较特殊,是一个1*2的向量,在head内部根据自注意力公式,softmax部分直接为1,其输出就是$head_1^v$。
    最后,根据划分的head个数,将每个head输出的结果进行组合,得到每个输入对应的输出结果。
    归纳一下,其计算步骤分为步。

    1. 根据$W^q$,$W^k$,$W^v$三个矩阵分别计算出$q$、$k$、$v$。
    2. 根据head个数对$q$、$k$、$v$进行均分操作。这里其实就算不能完全均分也是可以计算的。
    3. 将刚刚均分的结果以head为单位进行重新组合。
    4. 在每个head内使用自注意力公式,计算出每个head的结果。
    5. 根据head个数,将每个head计算结果进行重新组合,得倒每个输入对应的输出。

    img点击并拖拽以移动编辑
